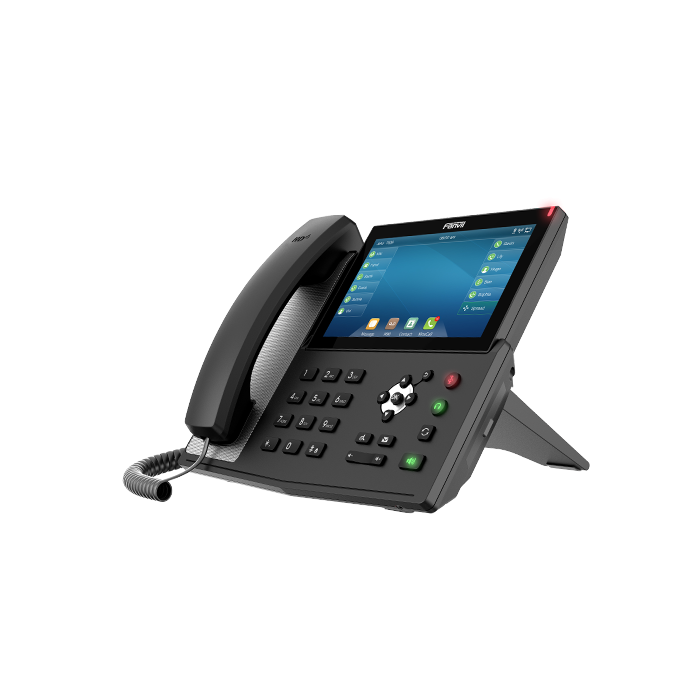

With a modern, clear design, Fanvil X7 is a high-end enterprise IP phone for business users who need immediate access to all of their important information. In addition to a 7 inch capacitive touch screen for up to 127 DSS key entries, the telephone also features 20 SIP lines, HD audio with Opus support, Built-in Bluetooth, Wi-Fi connectivity and more!

Highlights

• 20 SIP lines
• HD audio on speakerphone and handset
• 7 inch capacitive touch screen
• Built-in Bluetooth for connecting BT headset
• WiFi connectivity via WF20 WiFi dongle
• Up to 127 DSS keys entries available at the display
• Video codec H.264 support for receiving video calls
• Dual Gigabit ports, integrated PoE
• Stand with two adjustable angles of 40 and 50 degrees

Specifications

Generic

• 20 SIP Lines
• HD Voice
• Support receiving Video call
• PoE Enabled
• 7 inch capacitive touch screen
• Handset / Hands-free / Headset mode
• Intelligent DSS Keys
• Optional External Power Supply

Phone Features

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Black/White List Call Filtering
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 2.1: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support recording (via flash drive or server recording)
• Action URL/Active URI
• usCSTA

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 3-way Conference
• Hot Line
• Hot desking

Video

• Video codec H.264
• Video call resolution QCIF/CIF/VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec: G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 7.0 inch (800x480) Capacitive touch screen
• Keypad: 26 keys, including--5 function keys (hold/MWI/mute/headset/redial), 4 navigation keys, 1 OK key, 1 return key, 12 standard phone digits keys, 2 volume control keys (up/down), 1 hands-free key
• HD handset (RJ9) x1
• Standard RJ9 handset wire x1
• 1.5M CAT5 Ethernet cable x1
• Back rack x1
• RJ9 port x2: handset, headset
• RJ45 port x2: network, PC (bridged to network)
• USB 2.0 port x1: standard USB-A, connect with WiFi USB dongle or flash driver
• DC power input 5V/2A
• Power consumption (PoE): 2.6-9W
• Power consumption (adapter): 2.4-8W
• Working temperature: 0-45C
• Working humidity: 10~95%
• Installation: Desktop Stand
• Color: Black
• Device dimensions: desktop stand (angle 1) 268 x 185 x 189 mm; desktop stand (angle 2) 268 x 201 x 168 mm; gift box dimensions 304 x 297 x 66 mm
• Outer carton dimensions: 616 x 358 x 329 mm (10 pcs)
